HMC

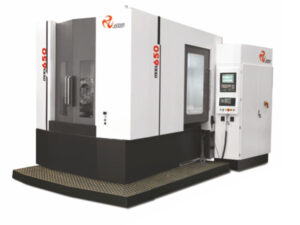

Horizontal Machining Center
VMSL offers HMC machining in Rajkot on twin-pallet horizontal machining centers with indexing rotary tables. Because the part rotates on the pallet, four sides can be machined in one setup. As a result, holes and faces on different sides stay accurately aligned, and handling time drops.
The twin pallet changer lets the operator load the next part while the machine is still cutting. So the spindle keeps working, which lowers the cost per part on production orders.
Specifications
| Specifications | HX 400 | HX 500 | HX 600 |
| Twin Pallet Changer (Pallet Size) | 400 x 400 mm | 500 x 500 mm | 630 x 630 mm |
| Max. Workpiece Size (Ø x Height) | Ø600 x 700 mm | Ø700 x 750 mm | Ø850 x 950 mm |
| Maximum Weight on Pallet | 400 kgf | 800 kgf | 800 kgf |
| Travels (X/Y/Z Axis) | 600/500/500 mm | 700/600/600 mm | 900/730/750 mm |
| Rapid Traverse (X/Y/Z Axis) | 40 m/min | 30 m/min | 30 m/min |
| Type of Table | 0.001° Indexing Rotary Table | 1° Indexing Rotary Table | 0.001° Indexing Rotary Table |
| Spindle Speed | 12000 rpm (BT 40) | 6000 rpm (BT 50) | 6000 rpm (BT 50) |
| Tool Storage Capacity | 50 | 60 | 40 |
